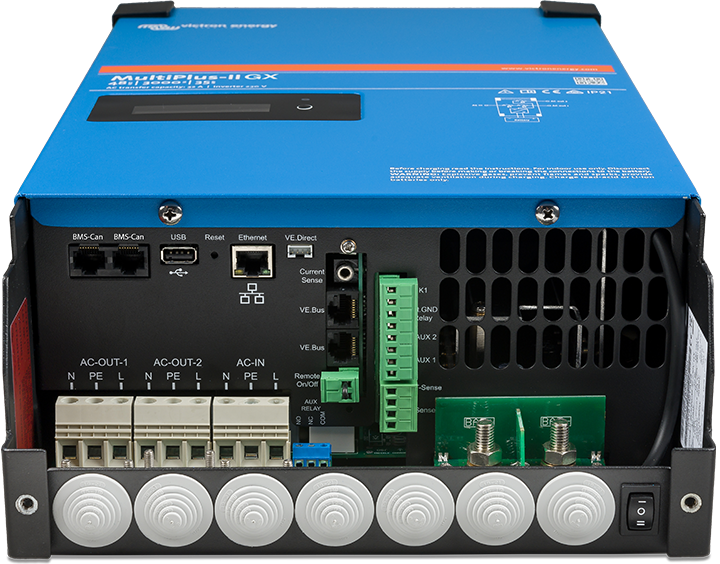

The Victron Multiplus-II with LCD and GX functionality.
All the funcitons of the MultiPlus-II range, with built-in anti-islanding and long list of worldwide country approvals and a 2 x 16 character display.
The display and Wi-Fi – read the battery, inverter and solar charge controller parameter.
These are also accessed via a smartphone or other wi-fi enabled device.
The integrated GX device includes a VE.Can interface, USB port, ethernet port and VE.Direct port.
Applications include on-grid, off-grid energy storage systems and mobile applications.
Parallel and three phase operation.
Victron are a global leader in off-grid and battery storage systems, with over 40 years of expertise in the fields of renewable energy and portable power systems.
The true benefit of the Multiplus is the software functionality and advanced protection systems, combined with ESS this is an extreamly advanced Energy management system.
DC Input: 38-66V (48V).
Continuous Output Power: 3000VA (2400W).
Peak Power: 5500W.
Maximum Efficiency: 95%.
Zero-Load Power: 2-11W.
AC Input: 187-265VAC 45-65HZ.
Max Charge Current: 35A (48V).
AC Transfer Relay: 32A.
Dimensions: 506 x 275 x 147 mm.
Weight: 26 kg.
Warranty: 5 years.
